SAP Commerce Cronjob Overview

What is Cronjob

CronJob is a background activity that runs automatically or manually to execute some business logic at a scheduled time or interval, without user interaction. It is mainly used for long-running, repetitive, or system-level tasks. Example: Product / catalog synchronization, Order cleanup, Price & stock import, Indexing (Solr), Sending emails, Data cleanup.

Elements of Cronjob:

• Cronjob: contains additional configuration and runtime information(how to execute)
• Job: contains business logic for what to execute(what to execute)
• Trigger: create trigger to run job at a particular time(when to execute)

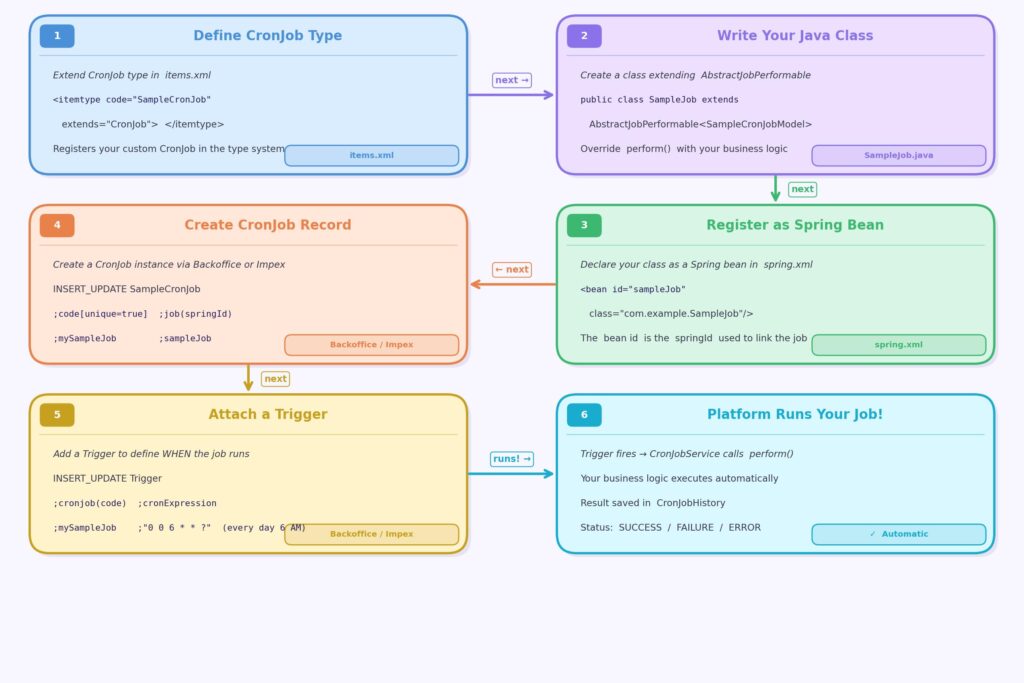

Steps to create custom Cronjob:

STEP 1: Create new itemtype which extends out of the box CronjobModel in *items.xml. To know how to create itemtype , refer itemtype.

<itemtypes>
    <itemtype code="DeactivateProductCronJob"
              extends="CronJob"
              autocreate="true"
              generate="true">
        <attributes>
            <attribute qualifier="thresholdStock" type="java.lang.Integer">
                <modifiers optional="true"/>
                <persistence type="property"/>
            </attribute>
        </attributes>
    </itemtype>
</itemtypes>

STEP 2: Build and update the system. After build, DeactivateProductCronJobModel.java file created.

STEP 3: Create java class which extends “AbstractJobPerformable” or implements “JobPerformable” and override perform() method

public class DeactivateProductJob extends AbstractJobPerformable<DeactivateProductCronJobModel>
{
    @Override
    public PerformResult perform(DeactivateProductCronJobModel cronJob)
    {
        Integer threshold = cronJob.getThresholdStock();
        System.out.println("Running product deactivation job");
        System.out.println("Threshold Stock: " + threshold);
        return new PerformResult(CronJobResult.SUCCESS, CronJobStatus.FINISHED);
    }
}

perform() method return PerformResult. PerformResult contains 2 things:

1. CronJobResult: Result of execution
2. CronJobStatus: Current status of job

STEP 4: Define this job class bean in *spring.xml

<bean id="deactivateProductJobPerformable"
      class="com.training.core.job.DeactivateProductJob"/>

STEP 5: Create an entry for this job in ServiceLayerJob

Use the same spring bean id which you have created in last step.

INSERT_UPDATE ServicelayerJob;code[unique=true];springId
;deactivateProductJob;deactivateProductJobPerformable

STEP 6: Map job with CronjobModel.

Map your job with the same model which you used in job class

INSERT_UPDATE DeactivateProductCronJob; code[unique=true]; job(code); thresholdStock
;deactivateProductCronJob;deactivateProductJob;0

STEP 7: Schedule cronjob using trigger. This step is optional

INSERT_UPDATE Trigger;cronJob(code)[unique=true];cronExpression
;deactivateProductCronJob;0 0/10 * * * ?

How to make Job Abortable

To make job abortable, override the isAboratble() method and use clearAbortRequestedIfNeeded() method to handle this request

Composite Cronjobs

Developers use a Composite CronJobs to execute jobs sequentially when those jobs depend on each other.

Steps to create CompositeCronjob:

1. Create all individual jobs
2. Add all that jobs in CompositeEntry

INSERT_UPDATE CompositeEntry; code[unique=true]; executableCronJob(code)
;entry1;solrIndexerCronJob
;entry2;productExportCronJob
;entry3;cleanupCronJob

3. Add composite entries in CompositeCronjob model

INSERT_UPDATE CompositeCronJob  ;code[unique=true]; job(code); compositeEntries(code); sessionUser(uid)[default=admin]; sessionLanguage(isocode)[default=en]                                ;customCompositeCronJob;compositeJobPerformable;entry1, entry2, entry3

Scriping/ Dynamic Cronjobs

Using Dynamic CronJobs makes cronjobs creation easier. As a result, cronjobs can be created during runtime.

Steps to create Scripting cronjob:

1. Script: the itemtype where script is stored

INSERT_UPDATE Script; code[unique=true];content
;removeTestUserScript ;"import de.hybris.platform.servicelayer.search.FlexibleSearchService
import de.hybris.platform.servicelayer.search.SearchResult
import de.hybris.platform.core.model.user.UserModel
import de.hybris.platform.servicelayer.model.ModelService
def query = 'SELECT {PK} FROM {User} WHERE {name}=\'test\''
final SearchResult<UserModel> searchResult = flexibleSearchService.search(query)
if(searchResult.getResult().stream().findFirst().isPresent())
{
modelService.remove(searchResult.getResult().stream().findFirst().get())
}
"

2. Scripting job: this contain reference to defined script using scriptURI

INSERT_UPDATE ScriptingJob; code[unique=true];scriptURI;
;removeTestUserJob;model://removeTestUserScript;

3. Cronjob: create instance of cronjobModel and attach scripting job to it

INSERT_UPDATE CronJob;code[unique=true];job(code)[default=removeTestUserJob];sessionLanguage(isoCode)[default=en]
;removeTestUserCronJob
